Gauge of rail-type electric transfer car

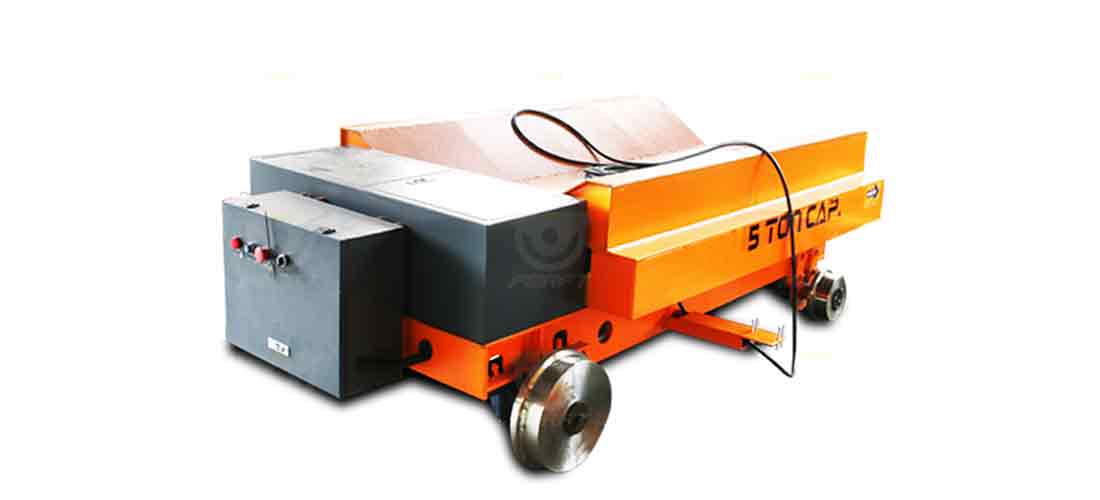

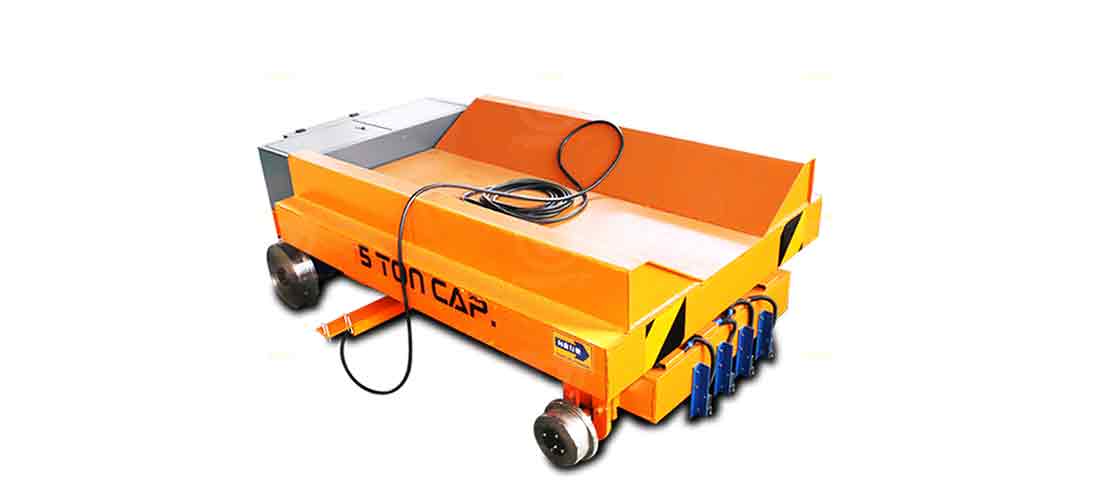

Electric transfer car working principle: as a kind of vehicle driven by electric, walking, handling, its driving device is DC motor or AC motor, motor, reducer, shaft, etc. to drive the wheel rotation, remote controller application forward, backward, stop and other operations. The manipulation related to the railed transfer car is easy to grasp according to the handle or control box, easy and flexible, fast delivery and transfer materials with high efficiency. The electric transfer car of rail type is used in the workshop, warehouse, plant, industrial area and other places of material fast handling role. Enterprise production and manufacturing handling can not be done without the help of an electric transfer car to realize the material from a storage place to another storage or production place, reduce the intensity of labour work, high efficiency, save time.

What is the gauge? The distance between the two rails of the rail-type electric transfer car running track, usually measured as the distance between the two rails, there are currently dozens of different gauges around the world, roughly divided into three kinds of ordinary rail, wide rail and narrow rail.

For the first time to use the tracked transfer car this kind of workshop handling equipment of the enterprise, most do not know the tracked transfer car track gauge model, also not clear they should use what model to meet their own workshop operation requirements. The use of a rail gauge is usually based on the size of the site and is used to calculate whether there is enough space to lay the track when the user needs the specific gauge parameters. The answer to the question of what is the standard gauge is 1435mm, which is the common gauge for electric transfer car tracks.

An electric transfer car that is narrower than the standard gauge of a rail-type electric transfer car is called a narrow gauge. What is the gauge of the electric transfer car with a narrow gauge? The answer is 1067 mm, 1000 mm, 762 mm, 600 mm, etc. The common gauge of narrow rail for electric transfer cars is 762 mm. The gauge width is different, and the electric transfer car size, load and stability are different. The track wider than the standard gauge is also called a wide track. The gauge of an electric transfer car with a wide rail is 1676 mm, 1524 mm, 1520 mm, etc.
