Description
Product introduction:

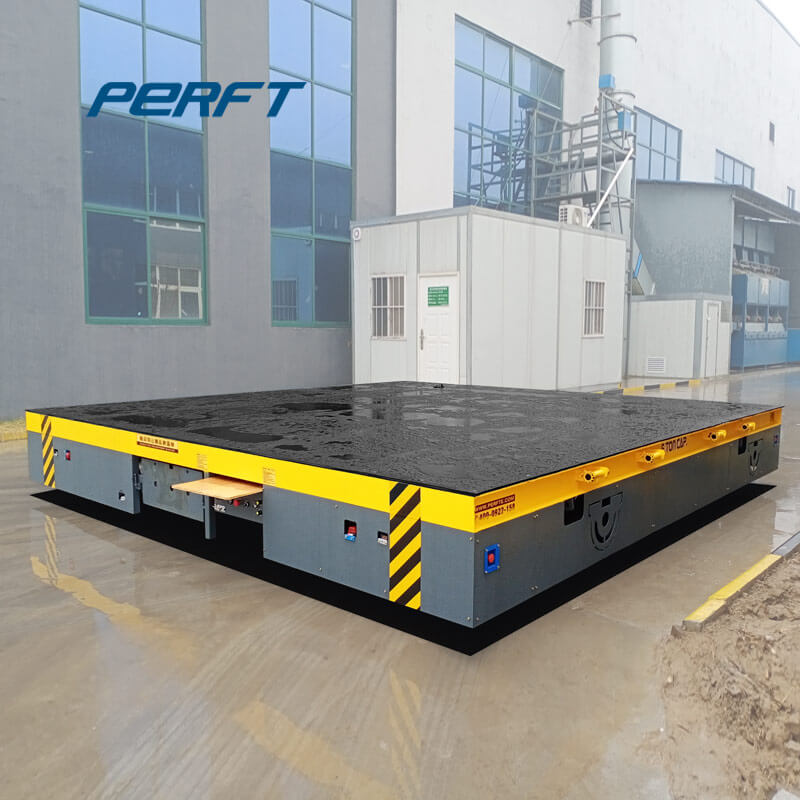

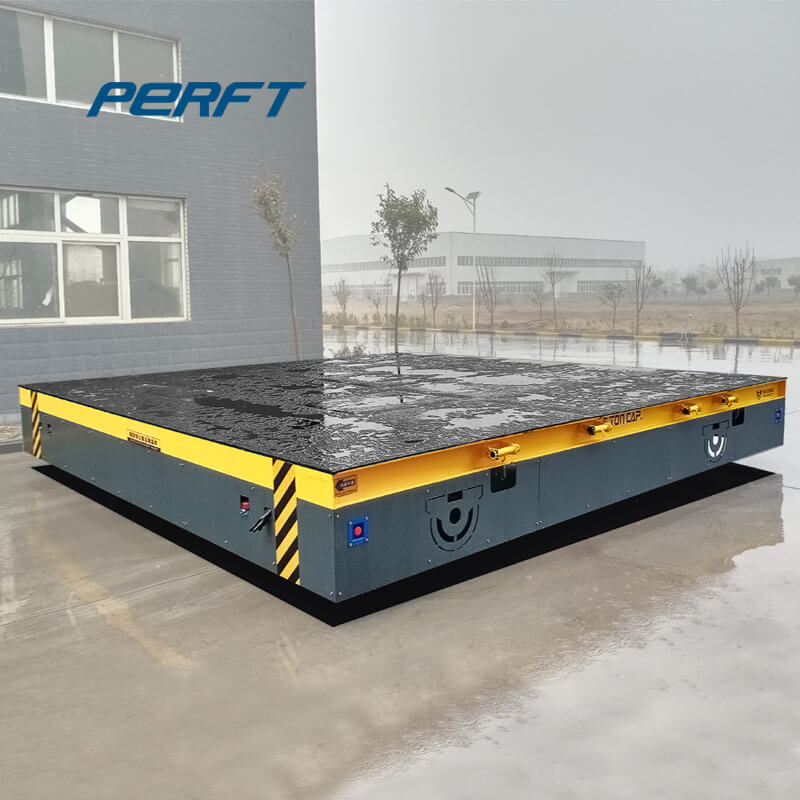

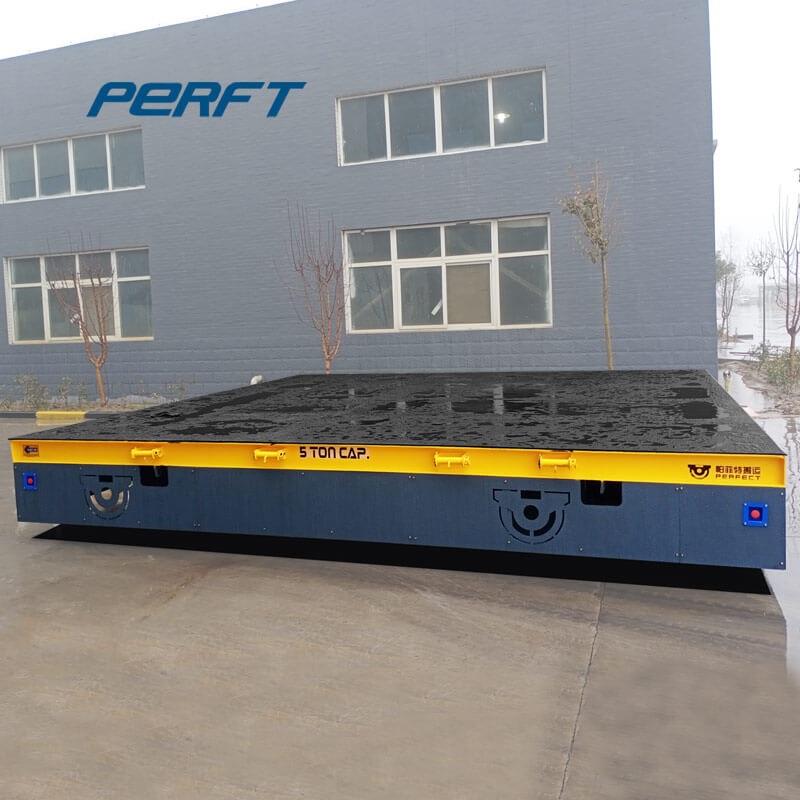

This motorized transfer vehicle is powered by a battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, a motorized transfer handling vehicle is specially designed to cooperate with a crane, which has been applied in many factories to transfer conductor or materials from one workshop to another.
Features of motorized transfer handling vehicles :
1.The series transfer vehicle has adjustable speed, saves transportation time, and is easy to operate by wireless remote control.
2.The components adopt Chinese military-grade components and can also be matched with Siemens and other partner components.
3.The trackless transfer vehicle on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.
| Model | BWP-2T | BWP-50T | BWP-150T | |
| Rated load (T) | 2 | 50 | 150 | |
| Table size | length(L) | 2000 | 5500 | 10000 |
| Width(W) | 1500 | 2500 | 3000 | |
| Height(H) | 450 | 650 | 1200 | |
| Wheel Base (mm) | 1200 | 4200 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ500 | Φ600 | |
| Motor Power (KW) | 1 | 5 | 15 | |
| Battery Capacity(Ah) | 180 | 330 | 600 | |
| Battery Voltage(V) | 24 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 3.3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 174 | 265.2 | |
